A typical room stands for a number of rooms in a building that have the same use and comparable room parameters.

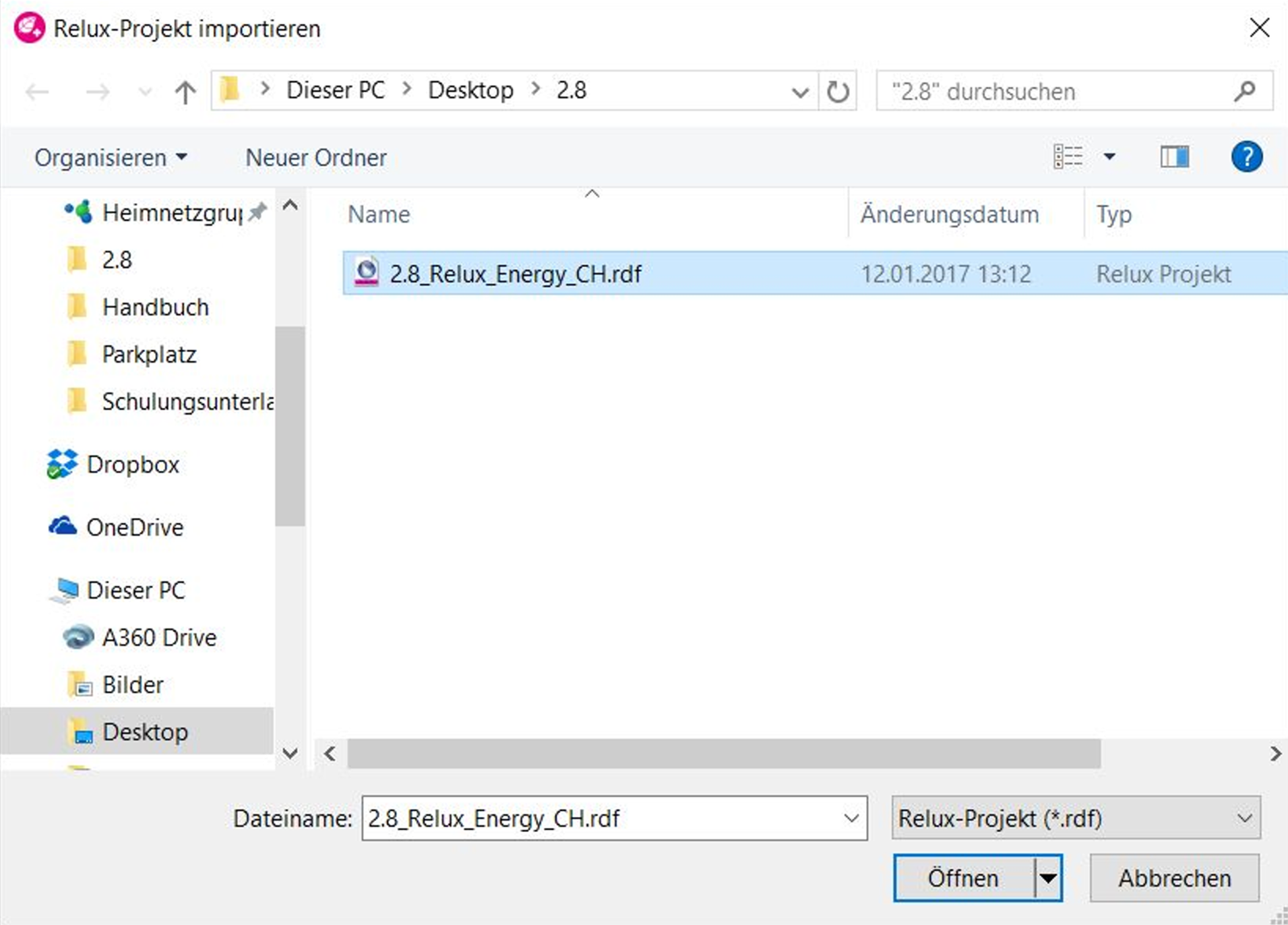

To import a Relux project, click on the "Import a Relux project"  symbol . Calling this up starts the file selection dialog which is used to search and adopt the corresponding files with the ending ".rdf".                                              .

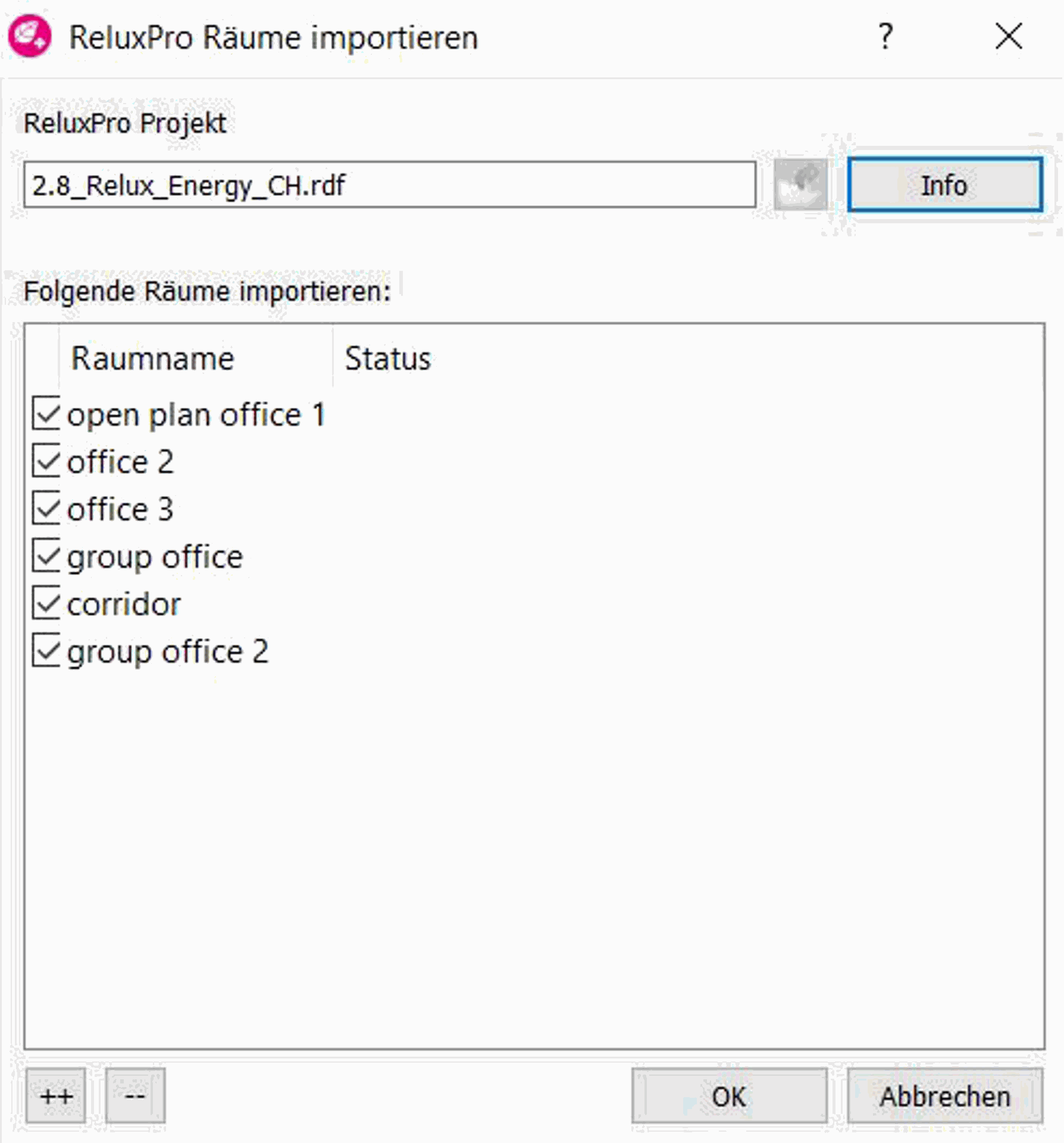

In an additional selection menu, it is possible to specify which rooms are to be adopted from a Relux project.

In general, all scenes (rooms) can be imported, but here it makes sense to import the specific room types (e.g 40 rooms in a project, whereas 20 of them are identical).

By selecting " OK",  you can now insert all the rooms from the Relux project into ReluxEnergyCH.

Note: Alternatively, you can find this dialog by calling up the menu:  "Extras" > "Relux Projekt importieren(import Relux project)". The key combination  "Ctrl + I" will also open the dialog.

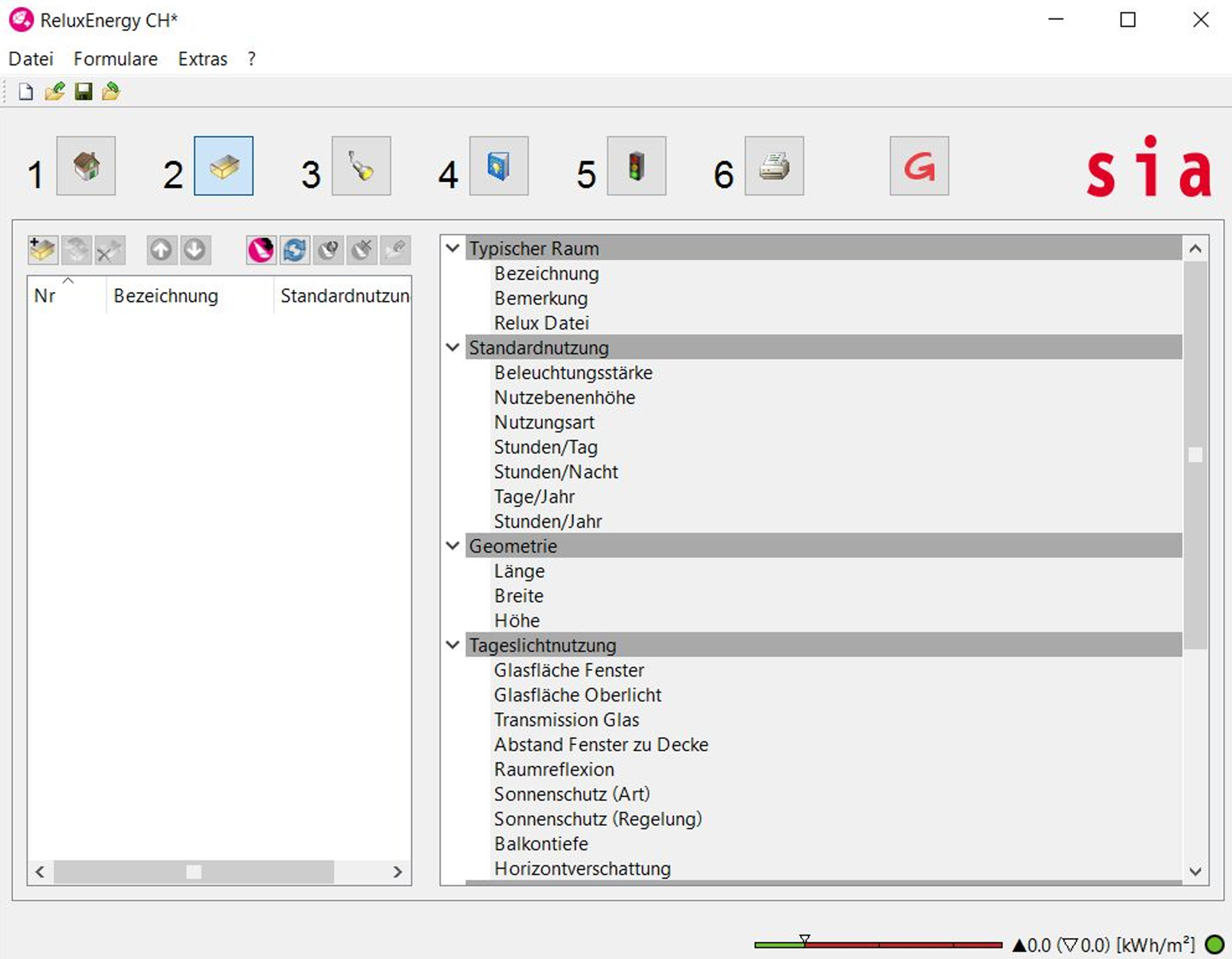

When the rooms are imported from ReluxDesktop, a " Typischer Raum  (typical room)" and an entry in the " Raumbuch  (room book)" will automatically be created.

At the same time, the " Leuchten  (luminaires)" will also be included in the luminaires list.

All the information taken over from Relux will be marked with the symbol.

The " Pflichtfeld Standardnutzung  (compulsory box for standard use)" contains the standard uses as per SIA Information Sheet 2024.

The standard uses are allocated a fixed  "Beleuchtungsstärke  (illuminance)" and " Nutzungsstunden  (hours of use)".

Allocate the " Standardnutzung  (standard use)" to the individual rooms, as shown on the lower Fig. above.
