ReluxDesktop – Creating a discus as a 3D object

Modelling a discus, as known in athletics.

The lateral surfaces of the discus are to be flattened so that they end in a blunt edge.

To do this, we use a Boolean intersection of three objects.


The objects required are two compressed spheres and a cylinder.

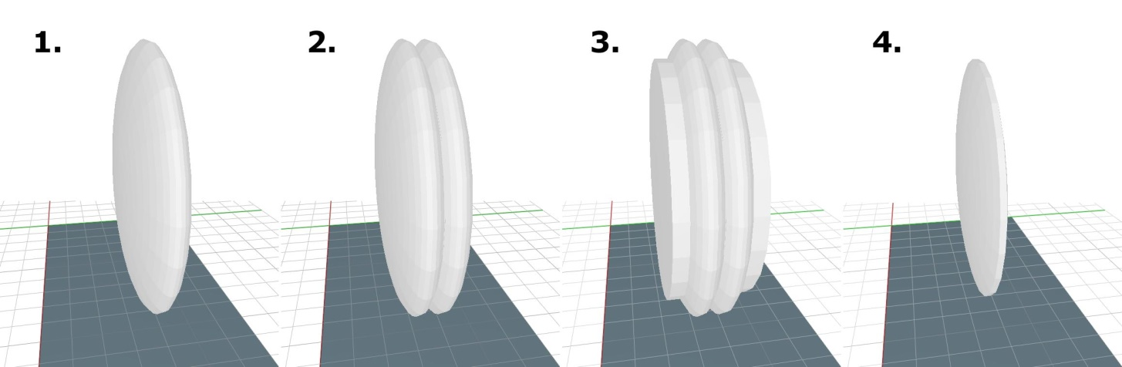

Example of modelling a discus.


1. Position a compressed sphere.

2. Duplicate the sphere positioned under "1" and shift it sideways.

3. Position a round cylinder (rotated 90° around the x-axis).

4. Generate a Boolean intersection between all three objects.
